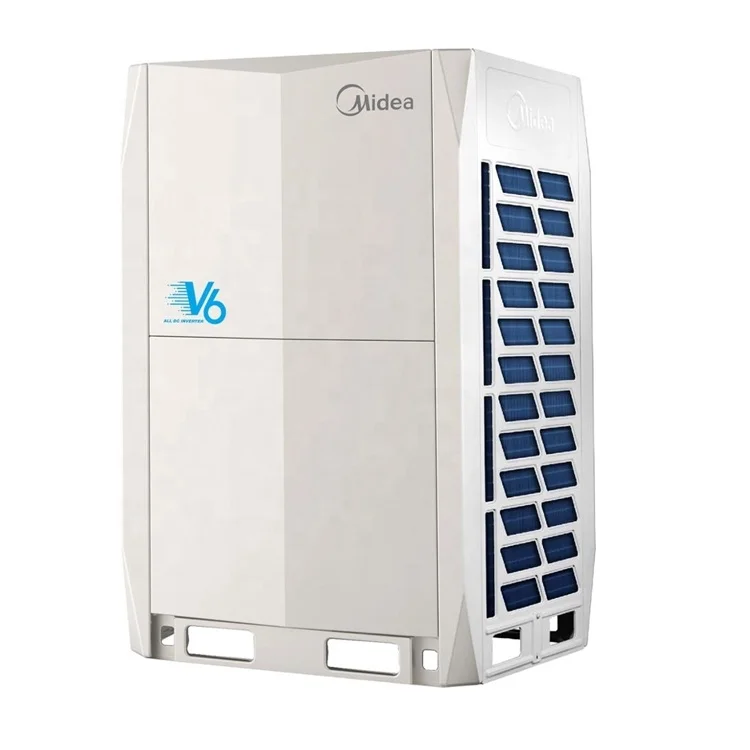

Midea V6 VRF Air Conditioner 8hp VRF Commercial Air Conditioning System MV6-252WV2GN1

FOB Reference Price:Get Latest Price
$2,000.00 - $20,000.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Air Conditioner Parts, Compressor
Place of Origin:
Guangdong, China
Brand Name:
Midea
Model Number:
MV6-252WV2GN1
Certification:
CE, RoHS
Application:
Commercial, Commercial, Household
After-sales Service Provided:
Free spare parts, Field maintenance and repair service
Warranty:
1 year
Power Source:
Electric
Product name:
Midea V6 VRF Air Conditioner
Cooling capacity:
25.2 Kw
Heating capacity:
25.2 Kw
Refrigerant:
R410a
Weight:
242KG
Power supply:
380V/50 HZ
Model:
MV6-252WV2GN1
Packed dimensions:
1090*1805*860mm
Compressor:
DC Inverter
Air Flow:
11000m3/h
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export worthy, plastic plus carton packing
Port
China port,Shenzhen,Guangzhou,Shanghai,Qingdao,etc
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 20 To be negotiated
Product Description



Midea VRF Air Conditioner MV6-252WV2GN1 25.2kW Cooling Capacity 8hp Cooling And Heating Multi Split System

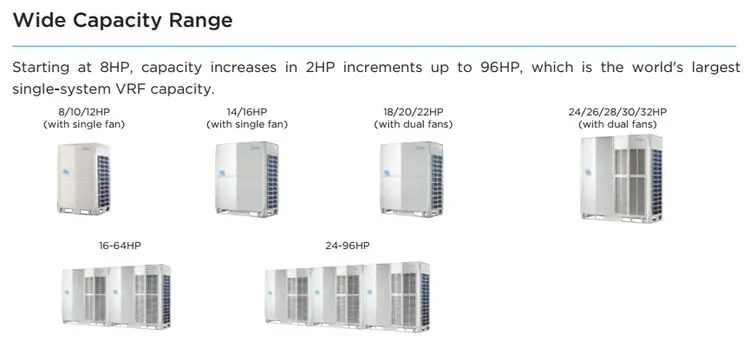

Wide capacity range and operation range

EMS maximizes comfort and energy efficiency

EVI increases heating and cooling capacity under extreme conditions

Multi channels refrigerant cooling system

Triple configurations simplified installation, commissioning and servicing


Midea V6 VRF4.jpg

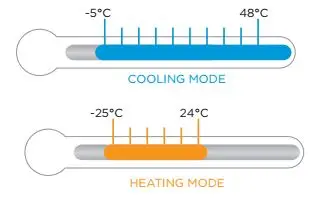

Wide Operation Range





The V6 VRF can operate stably in a wide ambient temperature range:from-5℃ to 48℃ in cooling mode and from-25℃ to 24℃ in heating mode.

              Midea V6 VRF5.jpg

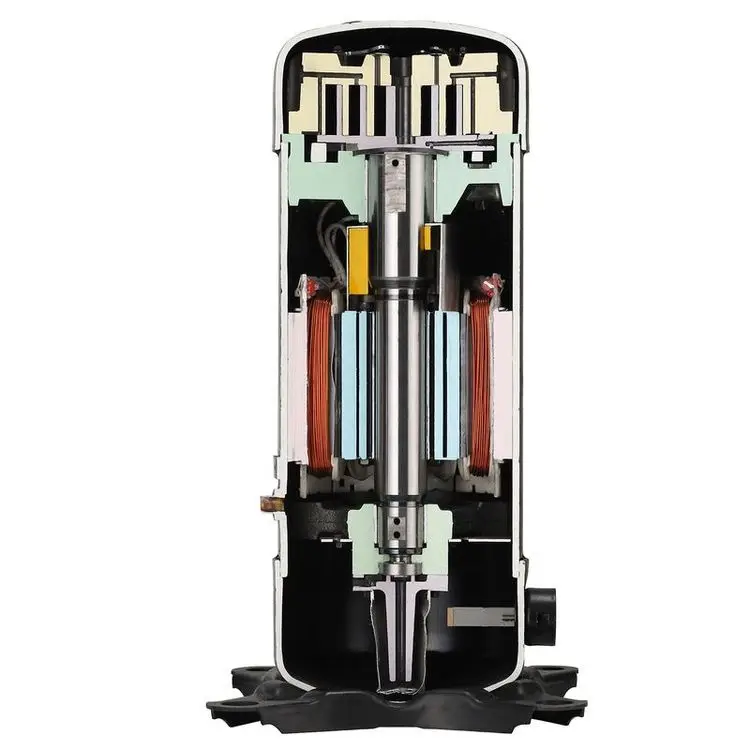

Enhanced Vapor Injection (EVI) Compressor



Thanks to the vapor injection DC inverter compressor, the V6 VRF can run heating mode stably down to -25℃, and the heating capacity can be improved greatly.



Product Parameters



CapacityHP8101214
ModelMV6-252WV2GN1MV6-280WV2GN1MV6-335WV2GN1MV6-400WV2GN1
Power supplyV/Ph/Hz380-415V/3/50(60)
CoolingCapacitykW25.2505661.5
kBut/h86.0170.6191.1209.8
Power inputkW5.312.515.118.4
EERkW/kW4.7543.73.35
HeatingCapacitykW25.2505661.5
kBut/h86.0170.6191.1209.8
Power inputkW4.610.612.715
COPkW/kW5.504.74.44.1
Connectable Indoor UnitTotal Capacity50-130% of outdoor unit capacity
Max. quantity13293336
CompressorsTypeDC inverter
Quantity1
Fan motorsTypeDC
Quantity1
Max. ESPPa20 Default; 60 Customize
RefrigerantTypeR410A
Factory Chargekg1113
Pipe connectionsLiquid pipemm12.715.915.9
Gas pipemm25.428.631.8
Airflow ratem3/h1100013000
Sound pressure leveldB(A)5860
Net dimensions (WxHxD)mm990*1635*7901340*1635*850
Packed dimensions (WxHxD)mm1090*1805*8601405*1805*910
Net weightkg227277
Gross weightkg242304
Ambient temp operating rangeCooling-5 to 54
Heating-25 to 24

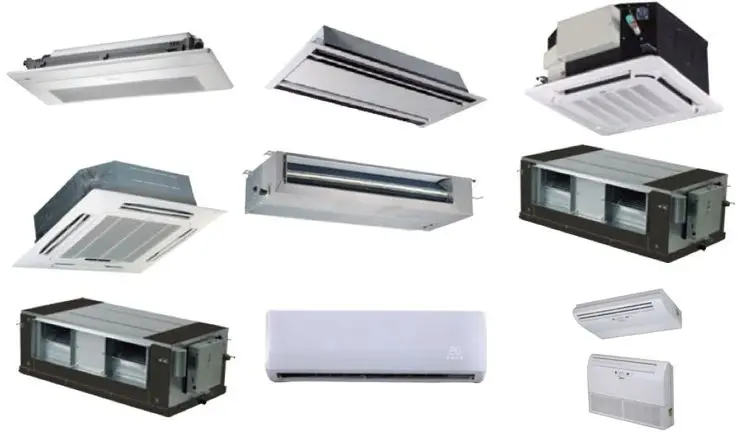

Related Indoor Units
